我们不仅可以通过相应工具识别目标主机上的服务指纹信息,还可以进行系统指纹信息识别。常见的系统指纹信息有操作系统类型、系统版本和内核版本等。本文介绍系统识别的方法。

1. Nmap系统识别

在Nmap工具中,提供了一些选项可以用来实施系统识别。下面介绍具体的实现方法。

(1)识别操作系统

在Nmap工具中提供了一个-O选项,可以用来识别操作系统。用于识别操作系统的语法格式如下:

nmap -O [host]

其中,-O选项用于识别操作系统类型。注意,这里的选项-O是大写字母O,不是0。

识别目标主机192.168.33.152的操作系统类型。执行命令如下:

root@daxueba:~# nmap -O 192.168.33.152

Starting Nmap 7.70 ( https://nmap.org ) at 2021-08-02 15:22 CST

Nmap scan report for 192.168.33.152 (192.168.33.152)

Host is up (0.00036s latency).

Not shown: 997 closed ports

PORT STATE SERVICE

21/tcp open ftp

22/tcp open ssh

80/tcp open http

MAC Address: 00:0C:29:FD:58:4B (VMware) #MAC地址

Device type: general purpose #设备类型

Running: Linux 3.X|4.X #运行的系统

OS CPE: cpe:/o:linux:linux_kernel:3 cpe:/o:linux:linux_kernel:4 #操作系统中央处理单元

OS details: Linux 3.2 – 4.9 #操作系统详细信息

Network Distance: 1 hop #网络距离,即从源到目标经过的网络节点

OS detection performed. Please report any incorrect results at https://nmap.

org/submit/ .

Nmap done: 1 IP address (1 host up) scanned in 1.86 seconds

从以上输出信息中可以看到,目标主机的操作系统类型为Linux,内核版本为3.2。如果Nmap不能够判断出目标操作系统的话,将会提供指纹信息给Nmap的系统数据库。例如,识别目标主机10.10.1.11的操作系统。执行命令如下:

root@daxueba:~# nmap -O 10.10.1.11

Starting Nmap 7.70 ( https://nmap.org ) at 2021-08-02 15:29 CST

……

No exact OS matches for host (If you know what OS is running on it, see http://nmap.org/submit/ ).

TCP/IP fingerprint:

OS:SCAN(V=5.00%D=12/16%OT=3001%CT=1%CU=32781%PV=Y%DS=1%G=Y%M=00204A%TM=4B29

OS:4048%P=i686-pc-windows-windows)SEQ(CI=I%II=I%TS=U)OPS(O1=M400%O2=%O3=%O4

OS:=%O5=%O6=)OPS(O1=M400%O2=M400%O3=%O4=%O5=%O6=)OPS(O1=%O2=M400%O3=M400%O4

OS:=%O5=%O6=)OPS(O1=%O2=%O3=M400%O4=%O5=%O6=)OPS(O1=M400%O2=%O3=M400%O4=%O5

OS:=%O6=)WIN(W1=7FF%W2=0%W3=0%W4=0%W5=0%W6=0)WIN(W1=7FF%W2=7FF%W3=0%W4=0%W5

OS:=0%W6=0)WIN(W1=0%W2=7FF%W3=7FF%W4=0%W5=0%W6=0)WIN(W1=0%W2=0%W3=7FF%W4=0%

OS:W5=0%W6=0)WIN(W1=7FF%W2=0%W3=7FF%W4=0%W5=0%W6=0)ECN(R=Y%DF=Y%T=40%W=0%O=

OS:%CC=N%Q=)T1(R=Y%DF=Y%T=40%S=O%A=S+%F=AS%RD=0%Q=)T1(R=Y%DF=Y%T=40%S=O%A=O

OS:%F=AS%RD=0%Q=)T1(R=Y%DF=Y%T=40%S=Z%A=S+%F=AR%RD=0%Q=)T2(R=Y%DF=Y%T=40%W=

OS:0%S=Z%A=S+%F=AR%O=%RD=0%Q=)T3(R=Y%DF=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=

OS:)T4(R=Y%DF=Y%T=40%W=0%S=A%A=Z%F=R%O=%RD=0%Q=)T5(R=Y%DF=Y%T=40%W=0%S=Z%A=

OS:S+%F=AR%O=%RD=0%Q=)T6(R=Y%DF=Y%T=40%W=0%S=A%A=Z%F=R%O=%RD=0%Q=)T7(R=Y%DF

OS:=Y%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)U1(R=Y%DF=Y%T=40%IPL=38%UN=0%RIPL=G

OS:%RID=G%RIPCK=G%RUCK=G%RUD=G)IE(R=Y%DFI=S%T=40%CD=S)

以上输出信息就是Nmap向数据库提交的指纹信息,这些指纹信息是自动生成的,并且标识了目标系统的操作系统。

(2)指定识别的操作系统

当扫描多个主机时,可以使用–osscan-limit选项来指定识别特定主机的操作系统类型。这样,使用该选项进行操作系统识别可以节约大量的时间。指定识别主机的操作系统类型语法格式如下:

nmap -O –osscan-limit [host]

其中,–osscan-limit选项表示针对指定的目标进行操作系统检测。如果发现一个打开和关闭的TCP端口时,操作系统检测会更有效。使用该选项,Nmap只对满足这个条件的主机进行操作系统检测。这样可以节约时间,特别是在使用-P0扫描多个主机时。该选项仅在使用-O或-A进行操作系统检测时起作用。

使用Nmap针对指定的目标进行操作系统检测。执行命令如下:

root@daxueba:~# nmap -P0 192.168.1.0/24 -O –osscan-limit

Starting Nmap 7.70 ( https://nmap.org ) at 2021-08-02 16:02 CST

Nmap scan report for 192.168.1.1 (192.168.1.1)

Host is up (0.00073s latency).

Not shown: 994 closed ports

PORT STATE SERVICE

21/tcp open ftp

80/tcp open http

445/tcp open microsoft-ds

5678/tcp open rrac

8080/tcp open http-proxy

52869/tcp open unknown

MAC Address: 70:85:40:53:E0:35 (Unknown)

Device type: general purpose

Running: Linux 3.X|4.X

OS CPE: cpe:/o:linux:linux_kernel:3 cpe:/o:linux:linux_kernel:4

OS details: Linux 3.2 – 4.9 #操作系统详细信息

Network Distance: 1 hop

Nmap scan report for kdkdahjd61y369j (192.168.1.3)

Host is up (0.000085s latency).

All 1000 scanned ports on kdkdahjd61y369j (192.168.1.3) are filtered

MAC Address: 1C:6F:65:C8:4C:89 (Giga-byte Technology)

Nmap scan report for test-pc (192.168.1.5)

Host is up (0.00047s latency).

Not shown: 982 closed ports

PORT STATE SERVICE

21/tcp open ftp

22/tcp open ssh

80/tcp open http

135/tcp open msrpc

139/tcp open netbios-ssn

443/tcp open https

445/tcp open microsoft-ds

902/tcp open iss-realsecure

912/tcp open apex-mesh

1433/tcp open ms-sql-s

2383/tcp open ms-olap4

5357/tcp open wsdapi

49152/tcp open unknown

49153/tcp open unknown

49154/tcp open unknown

49155/tcp open unknown

49157/tcp open unknown

49158/tcp open unknown

MAC Address: 00:0C:29:21:8C:96 (VMware)

Device type: general purpose

Running: Microsoft Windows 7|2008|8.1

OS CPE: cpe:/o:microsoft:windows_7::- cpe:/o:microsoft:windows_7::sp1

cpe:/o:microsoft:windows_server_2008::sp1 cpe:/o:microsoft:windows_server_

2008:r2 cpe:/o:microsoft:windows_8 cpe:/o:microsoft:windows_8.1

OS details: Microsoft Windows 7 SP0 – SP1, Windows Server 2008 SP1, Windows

Server 2008 R2, Windows 8, or Windows 8.1 Update 1 #操作系统详细信息

Network Distance: 1 hop

Nmap scan report for 192.168.1.6 (192.168.1.6)

Host is up (0.00057s latency).

Not shown: 977 closed ports

PORT STATE SERVICE

21/tcp open ftp

22/tcp open ssh

23/tcp open telnet

25/tcp open smtp

53/tcp open domain

80/tcp open http

111/tcp open rpcbind

139/tcp open netbios-ssn

445/tcp open microsoft-ds

512/tcp open exec

513/tcp open login

514/tcp open shell

1099/tcp open rmiregistry

1524/tcp open ingreslock

2049/tcp open nfs

2121/tcp open ccproxy-ftp

3306/tcp open mysql

5432/tcp open postgresql

5900/tcp open vnc

6000/tcp open X11

6667/tcp open irc

8009/tcp open ajp13

8180/tcp open unknown

MAC Address: 00:0C:29:3E:84:91 (VMware)

Device type: general purpose

Running: Linux 2.6.X

OS CPE: cpe:/o:linux:linux_kernel:2.6

OS details: Linux 2.6.9 – 2.6.33 #操作系统详细信息

Network Distance: 1 hop

Nmap scan report for kali (192.168.1.9)

Host is up (0.00093s latency).

All 1000 scanned ports on kali (192.168.1.9) are closed

MAC Address: 00:0C:29:6C:C4:92 (VMware)

Nmap scan report for daxueba (192.168.1.4)

Host is up (0.000010s latency).

All 1000 scanned ports on daxueba (192.168.1.4) are closed

OS detection performed. Please report any incorrect results at

https://nmap.org/submit/ .

Nmap done: 256 IP addresses (6 hosts up) scanned in 7.64 seconds

从以上输出信息可以看到,如果探测到目标主机上存在开放的端口,则推测出了其操作系统类型;如果目标主机上不存在开放的端口,则无法推测其操作系统类型。

(3)推测操作系统

当Nmap无法确定所探测的操作系统时,会尽可能地提供最相近的匹配。为了对目标系统推测得更准确,可以使用–osscan-guess或–fuzzy选项来实现。语法格式如下:

nmap -O –osscan-guess;–fuzzy [host]

其中,–osscan-guess;–fuzzy选项用于推测操作系统检测结果,将以百分比的方式给出对操作系统信息的猜测。当Nmap无法确定所检测的操作系统时,会尽可能地提供最相近的匹配。Nmap默认进行这种匹配,使用任意一个选项将使得Nmap的推测更加有效。

推测目标主机www.163.com的操作系统类型。执行命令如下:

root@daxueba:~# nmap -O –osscan-guess www.163.com

Starting Nmap 7.70 ( https://nmap.org ) at 2021-08-02 16:08 CST

Nmap scan report for www.163.com (124.163.204.105)

Host is up (0.015s latency).

Other addresses for www.163.com (not scanned): 2408:8726:5100::4f

rDNS record for 124.163.204.105: 105.204.163.124.in-addr.arpa

Not shown: 955 closed ports

PORT STATE SERVICE

80/tcp open http

81/tcp open hosts2-ns

82/tcp open xfer

84/tcp open ctf

88/tcp open kerberos-sec

135/tcp filtered msrpc

139/tcp filtered netbios-ssn

443/tcp open https

445/tcp filtered microsoft-ds

……省略部分内容

Device type: general purpose|firewall|media device|phone|broadband router security-misc

Running (JUST GUESSING): Linux 3.X|2.6.X|4.X (92%), IPCop 2.X (91%), Tiandy

embedded (91%), Google Android 5.X (90%), D-Link embedded (90%), Draytek

embedded (89%)

OS CPE: cpe:/o:linux:linux_kernel:3.2 cpe:/o:linux:linux_kernel:2.6.32

cpe:/o:ipcop:ipcop:2.0 cpe:/o:linux:linux_kernel:4.9 cpe:/o:google:

android:5.0.1 cpe:/h:dlink:dsl-2890al cpe:/o:linux:linux_kernel:2.6.25.20

cpe:/h:draytek:vigor_2960

Aggressive OS guesses: Linux 3.2 (92%), IPCop 2.0 (Linux 2.6.32) (91%), Linux

2.6.32 (91%), Linux 4.9 (91%), Tiandy NVR (91%), Android 5.0.1 (90%), Linux

3.18 (90%), D-Link DSL-2890AL ADSL router (90%), OpenWrt Kamikaze 8.09 (Linux

2.6.25.20) (90%), Linux 2.6.18 – 2.6.22 (89%)

No exact OS matches for host (test conditions non-ideal).

Network Distance: 9 hops

OS detection performed. Please report any incorrect results at https://nmap.org/submit/ .

Nmap done: 1 IP address (1 host up) scanned in 5.65 seconds

以上输出信息显示了目标主机可能使用的操作系统列表。这里列举可能的系统类型,并以百分比形式显示每种类型的概率。从输出结果显示的比例中可以看到,目标主机的操作系统类型可能是Linux 3.2。

2. Ping系统识别

Ping是Windows、UNIX和Linux系统下的一个命令,使用该命令可以检查网络是否连通。如果目标主机正确响应的话,在响应包中将包括有对应的TTL值。TTL是Time To Live(生成时间)的缩写,该字段指定IP包被路由器丢弃之前允许通过的最大网段数量。其中,不同操作系统类型响应的TTL值不同。所以我们可以使用Ping命令进行系统识别。下面介绍使用Ping命令实施系统识别的方法。

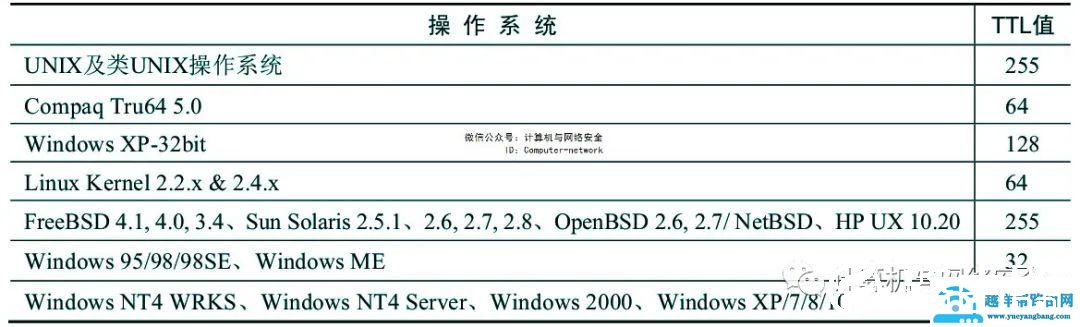

为了能够快速地确定一个目标系统的类型,下面给出了一个操作系统初始TTL值列表,如表1所示。

系统怎么连接扫描功能(网络扫描是怎么做的)(2)

表1 各个操作系统的初始TTL值

使用Ping测试目标主机(192.168.33.152)的操作系统类型(该目标主机的操作系统类型为Linux)。执行命令如下:

root@daxueba:~# ping 192.168.33.152

PING 192.168.33.152 (192.168.33.152) 56(84) bytes of data.

64 bytes from 192.168.33.152: icmp_seq=1 ttl=64 time=0.242 ms

64 bytes from 192.168.33.152: icmp_seq=2 ttl=64 time=0.431 ms

64 bytes from 192.168.33.152: icmp_seq=3 ttl=64 time=0.431 ms

64 bytes from 192.168.33.152: icmp_seq=4 ttl=64 time=0.440 ms

从输出的信息可以看到,响应包中的TTL值为64。根据前面列出的表格6.1,可以看到这是Linux操作系统。

使用Ping测试目标主机(192.168.33.229)的操作系统类型(该目标主机的操作系统类型为Windows 7)。执行命令如下:

root@daxueba:~# ping 192.168.33.229

PING 192.168.33.229 (192.168.33.229) 56(84) bytes of data.

64 bytes from 192.168.33.229: icmp_seq=1 ttl=128 time=1.57 ms

64 bytes from 192.168.33.229: icmp_seq=2 ttl=128 time=1.01 ms

64 bytes from 192.168.33.229: icmp_seq=3 ttl=128 time=0.276 ms

64 bytes from 192.168.33.229: icmp_seq=4 ttl=128 time=1.52 ms

从输出的信息可以看到,该响应包中的TTL值为128。由此可以说明,这是一个Windows操作系统。

3. xProbe2系统识别

xProbe2是一款远程主机操作系统探查工具,该工具通过ICMP协议来获得指纹。xProbe2通过模糊矩阵统计分析主动探测数据报文对应的ICMP数据报特征,进而探测得到远端操作系统的类型。下面介绍使用xProbe2工具实施操作系统指纹识别的方法。使用xProbe2工具实施系统识别的语法格式如下:

xProbe2 [host]

使用xProbe2工具对目标主机www.163.com实施系统识别。执行命令如下:

root@Kali:~# xprobe2 www.163.com

Xprobe2 v.0.3 Copyright (c) 2002-2005 fyodor@o0o.nu, ofir@sys-security.com,meder@o0o.nu

[+] Target is www.163.com #目标地址

[+] Loading modules. #正在加载模块

[+] Following modules are loaded: #被加载的模块

[x] [1] ping:icmp_ping – ICMP echo discovery module

[x] [2] ping:tcp_ping – TCP-based ping discovery module

[x] [3] ping:udp_ping – UDP-based ping discovery module

[x] [4] infogather:ttl_calc – TCP and UDP based TTL distance calculation

[x] [5] infogather:portscan – TCP and UDP PortScanner

[x] [6] fingerprint:icmp_echo – ICMP Echo request fingerprinting module

[x] [7] fingerprint:icmp_tstamp – ICMP Timestamp request fingerprinting module

[x] [8] fingerprint:icmp_amask – ICMP Address mask request fingerprinting module

[x] [9] fingerprint:icmp_port_unreach – ICMP port unreachable fingerprinting module

[x] [10] fingerprint:tcp_hshake – TCP Handshake fingerprinting module

[x] [11] fingerprint:tcp_rst – TCP RST fingerprinting module

[x] [12] fingerprint:smb – SMB fingerprinting module

[x] [13] fingerprint:snmp – SNMPv2c fingerprinting module

[+] 13 modules registered

[+] Initializing scan engine #初始化扫描引擎

[+] Running scan engine #正在实施扫描

[-] ping:tcp_ping module: no closed/open TCP ports known on 124.163.204.105.

Module test failed

[-] ping:udp_ping module: no closed/open UDP ports known on 124.163.204.105.

Module test failed

[-] No distance calculation. 124.163.204.105 appears to be dead or no ports known

[+] Host: 124.163.204.105 is up (Guess probability: 50%)#主机是活动的

[+] Target: 124.163.204.105 is alive. Round-Trip Time: 0.01503 sec

[+] Selected safe Round-Trip Time value is: 0.03007 sec

[-] fingerprint:tcp_hshake Module execution aborted (no open TCP ports known)

[-] fingerprint:smb need either TCP port 139 or 445 to run

[-] fingerprint:snmp: need UDP port 161 open

[+] Primary guess: #主要猜测

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.19” (Guess

probability: 100%)

[+] Other guesses: #其他猜测

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.20” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.21” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.22” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.23” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.24” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.25” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.26” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.27” (Guess

probability: 100%)

[+] Host 124.163.204.105 Running OS: “Linux Kernel 2.4.28” (Guess

probability: 100%)

[+] Cleaning up scan engine

[+] Modules deinitialized

[+] Execution completed.

从输出的信息中可以看到,通过xProbe2工具成功解析出了目标主机的IP地址,并且识别出了其操作系统类型。其中,目标主机的IP地址为124.163.204.105,操作系统类型为Linux,内核版本在2.4.19~2.4.28之间。

xProbe2工具在NAT模式下存在Bug,扫描后会出现HP的位置或者直接报错,具体如下:

root@Kali:~# xprobe2 www.163.com

Xprobe2 v.0.3 Copyright (c) 2002-2005 fyodor@o0o.nu, ofir@sys-security.com,meder@o0o.nu

[+] Target is www.163.com

[+] Loading modules.

[+] Following modules are loaded:

[x] [1] ping:icmp_ping – ICMP echo discovery module

[x] [2] ping:tcp_ping – TCP-based ping discovery module

[x] [3] ping:udp_ping – UDP-based ping discovery module

[x] [4] infogather:ttl_calc – TCP and UDP based TTL distance calculation

[x] [5] infogather:portscan – TCP and UDP PortScanner

[x] [6] fingerprint:icmp_echo – ICMP Echo request fingerprinting module

[x] [7] fingerprint:icmp_tstamp – ICMP Timestamp request fingerprinting module

[x] [8] fingerprint:icmp_amask – ICMP Address mask request fingerprinting module

[x] [9] fingerprint:icmp_port_unreach – ICMP port unreachable

fingerprinting module

[x] [10] fingerprint:tcp_hshake – TCP Handshake fingerprinting module

[x] [11] fingerprint:tcp_rst – TCP RST fingerprinting module

[x] [12] fingerprint:smb – SMB fingerprinting module

[x] [13] fingerprint:snmp – SNMPv2c fingerprinting module

[+] 13 modules registered

[+] Initializing scan engine

[+] Running scan engine

[-] ping:tcp_ping module: no closed/open TCP ports known on 124.163.204.105.

Module test failed

[-] ping:udp_ping module: no closed/open UDP ports known on 124.163.204.105.

Module test failed

[-] No distance calculation. 124.163.204.105 appears to be dead or no ports known

[+] Host: 124.163.204.105 is up (Guess probability: 50%)

[+] Target: 124.163.204.105 is alive. Round-Trip Time: 0.01528 sec

[+] Selected safe Round-Trip Time value is: 0.03056 sec

[-] fingerprint:tcp_hshake Module execution aborted (no open TCP ports known)

[-] fingerprint:smb need either TCP port 139 or 445 to run

[-] fingerprint:snmp: need UDP port 161 open

[+] Primary guess:

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.07.02 EEPROM G.07.17” (Guess probability: 83%)

[+] Other guesses:

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.07.02 EEPROM G.07.20” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.07.02 EEPROM G.08.04” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.07.19 EEPROM G.07.20” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.07.19 EEPROM G.08.03” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.07.19 EEPROM G.08.04” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.08.08 EEPROM G.08.04” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.08.21 EEPROM G.08.21” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM H.07.15 EEPROM H.08.20” (Guess probability: 83%)

[+] Host 124.163.204.105 Running OS: “HP JetDirect ROM G.06.00 EEPROM G.06.00” (Guess probability: 83%)

[+] Cleaning up scan engine

[+] Modules deinitialized

[+] Execution completed.

从以上输出的信息中可以看到,执行结果出错了(HP JetDirect ROM G.07.02 EEPROM G.07.17)。

在Kali Linux的新版本中,xProbe2工具运行后,测试的结果中操作系统类型显示为乱码。具体如下:

[+] Primary guess:

[+] Host 192.168.1.8 Running OS: ????U (Guess probability: 100%)

[+] Other guesses:

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Host 192.168.1.8 Running OS: ?????U (Guess probability: 100%)

[+] Cleaning up scan engine

[+] Modules deinitialized

[+] Execution completed.

4. p0f系统识别

p0f是一款用于识别远程操作系统的工具,该工具与前面介绍的其他工具不同,它是一个完全被动地识别操作系统指纹信息的工具,不会直接作用于目标系统。当启动该工具后,即可监听网络中的所有数据包。通过分析监听到的数据包,即可找出与系统相关的信息。下面介绍使用p0f工具来实施操作系统指纹识别的方法。

使用p0f工具对目标主机实施系统识别。执行命令如下:

1)启动p0f工具。执行命令如下:

root@daxueba:~# p0f

— p0f 3.09b by Michal Zalewski <lcamtuf@coredump.cx> —

[+] Closed 1 file descriptor.

[+] Loaded 322 signatures from ‘/etc/p0f/p0f.fp’.

[+] Intercepting traffic on default interface ‘eth0’.

[+] Default packet filtering configured [+VLAN].

[+] Entered main event loop.

从以上输出信息中可以看到,p0f工具仅显示了几行信息,无法捕获到其他信息。但是,p0f会一直处于监听状态。

2)此时,当有其他主机在网络中产生数据流量的话,将会被p0f工具监听到。例如,在另一台主机上通过浏览器访问一个站点,然后返回到p0f所在的终端,将看到如下信息:

.-[ 192.168.1.4/38934 -> 65.200.22.161/80 (http request) ]- #HTTP请求

| client = 192.168.1.4/38934 #客户端

| app = Safari 5.1-6 #应用

| lang = English #语言

| params = dishonest #程序

| raw_sig = 1:Host,User-Agent,Accept=[*/*],Accept-Language=[en-US,en;q=0.5],Accept-Encoding=[gzip, deflate],?Cache-Control,Pragma=[no-cache],Connection=[keep-alive]:Accept-Charset,Keep-Alive:Mozilla/5.0 (X11; Linux x86_64; rv:60.0) Gecko/20100101 Firefox/60.0 #数据内容

—-

.-[ 192.168.1.4/38934 -> 65.200.22.161/80 (uptime) ]-

| server = 65.200.22.161/80 #服务器

| uptime = 30 days 0 hrs 22 min (modulo 45 days) #时间

| raw_freq = 1048.46 Hz #频率

—-

.-[ 192.168.1.4/38934 -> 65.200.22.161/80 (http response) ]-

| server = 65.200.22.161/80

| app = ???

| lang = none

| params = none

| raw_sig = 1:Content-Type,?Content-Length,?Last-Modified,?ETag,Accept-Ranges=[bytes],Server,X-Amz-Cf-Id=[X7nIiIIBBeQOTeLSHRH3U4SM6xDHfgwK1EaKf8bdyemtuUoR8JK9Xg==],?Cache-Control,Date,Connection=[keep-alive]:Keep-Alive:AmazonS3

—-

.-[ 192.168.1.4/32854 -> 52.27.184.151/443 (syn) ]-

| client = 192.168.1.4/32854

| os = Linux 3.11 and newer

| dist = 0

| params = none

| raw_sig = 4:64+0:0:1460:mss*20,7:mss,sok,ts,nop,ws:df,id+:0

—-

.-[ 192.168.1.4/32854 -> 52.27.184.151/443 (host change) ]-

| client = 192.168.1.4/32854

| reason = tstamp port

| raw_hits = 0,1,1,1

—-

.-[ 192.168.1.4/32854 -> 52.27.184.151/443 (mtu) ]-

| client = 192.168.1.4/32854

| link = Ethernet or modem

| raw_mtu = 1500

—-

.-[ 192.168.1.4/32856 -> 52.27.184.151/443 (syn) ]-

| client = 192.168.1.4/32856

| os = Linux 3.11 and newer

| dist = 0

| params = none

| raw_sig = 4:64+0:0:1460:mss*20,7:mss,sok,ts,nop,ws:df,id+:0

—-

以上输出的信息,就是执行监听到客户端访问的数据信息。从以上输出的信息可以看到,探测到客户端的操作系统类型为Linux 3.11或更新的内核版本。

以上就是关于“系统怎么连接扫描功能(网络扫描是怎么做的)”希望能帮助到你!

本文来自投稿,不代表路由百科立场,如若转载,请注明出处:https://www.qh4321.com/175613.html

(0)

相关推荐
